LDX-020B Full CNC Front And Rear Angles TCT Saw Blade Grinding Machine

Brand Name : Lidexin

Model Number : LDX-020（B）

Certification : CU,ISO

Place of Origin : Foshan, Guangdong, China

MOQ : 1 unit

Price : Western Union

Payment Terms : T/T, Western Union

Supply Ability : 100pcs/mon

Delivery Time : 10-15 work days

Packaging Details : Wooden box packaging Appearance（Long*Width*Height）：1500X1200X1700mm

Cutter grinding stroke range : Max. 25mm (adjustable) teeth/min

Coolant cylinder volume : 85L

Total power : 2.2KW

Contact Now

LDX-020B Full CNC front and rear angles TCT saw blade grinding machine

Usage scenario:
1,Suitable for hardwood materials, such as mahogany, teak and other hard wood materials
2,And a variety of single and double veneer wood-based board, fire board sawing.
3,The large tooth spacing and strong teeth of the ladder saw blade make it suitable for cutting hardwood materials.


Main Technical Parameters :
Range of external diameter of processing:￠200-￠1200mm
Inner bore of saw blade:￠10-220mm
Thickness of saw web (steel plate):1-12mm
Pitch range:7-100mm
Tooth face angle:5°~+30°
Tooth top dorsal angle:6-45°
Tooth left/right gradient: Tooth top/tooth face 45°
Cutter grinding stroke range: Max. 25mm (adjustable) teeth/min
Grinding speed:0.5-6mm/s
Working speed: Max. 20 teeth/min
Grinding wheel dimensions outer diameter * bore: ￠125mm*￠32mmX1mm
Negative chamfer grinding: -27°
Grinding head rotation angle: 90° and 180°Grinding speed: 26m/s
Coolant pump flux:501/min
Coolant cylinder volume: 85L
Total power: 2.2KW
Voltage:three-phase 380v
Total weight of equipment:800KG
Appearance Long*Width*Height:1500X1200X1700mm
Technical features::
This machine is designed in reference to the features of domestic and foreign similar types, which absorbs and analyzes the advantages of the same type and improves the functions to some extent at the same time.
1. Preset many groups of tooth types and one-key multifunctional operation.
2. Trapezoid flat teeth can be finished at a time, features CNC grinding and arbitrary tooth types, and can improve the efficiency by 3 times; due to the adoption of improved tooth extraction operation, the accuracy is improved, and the service life is prolonged.

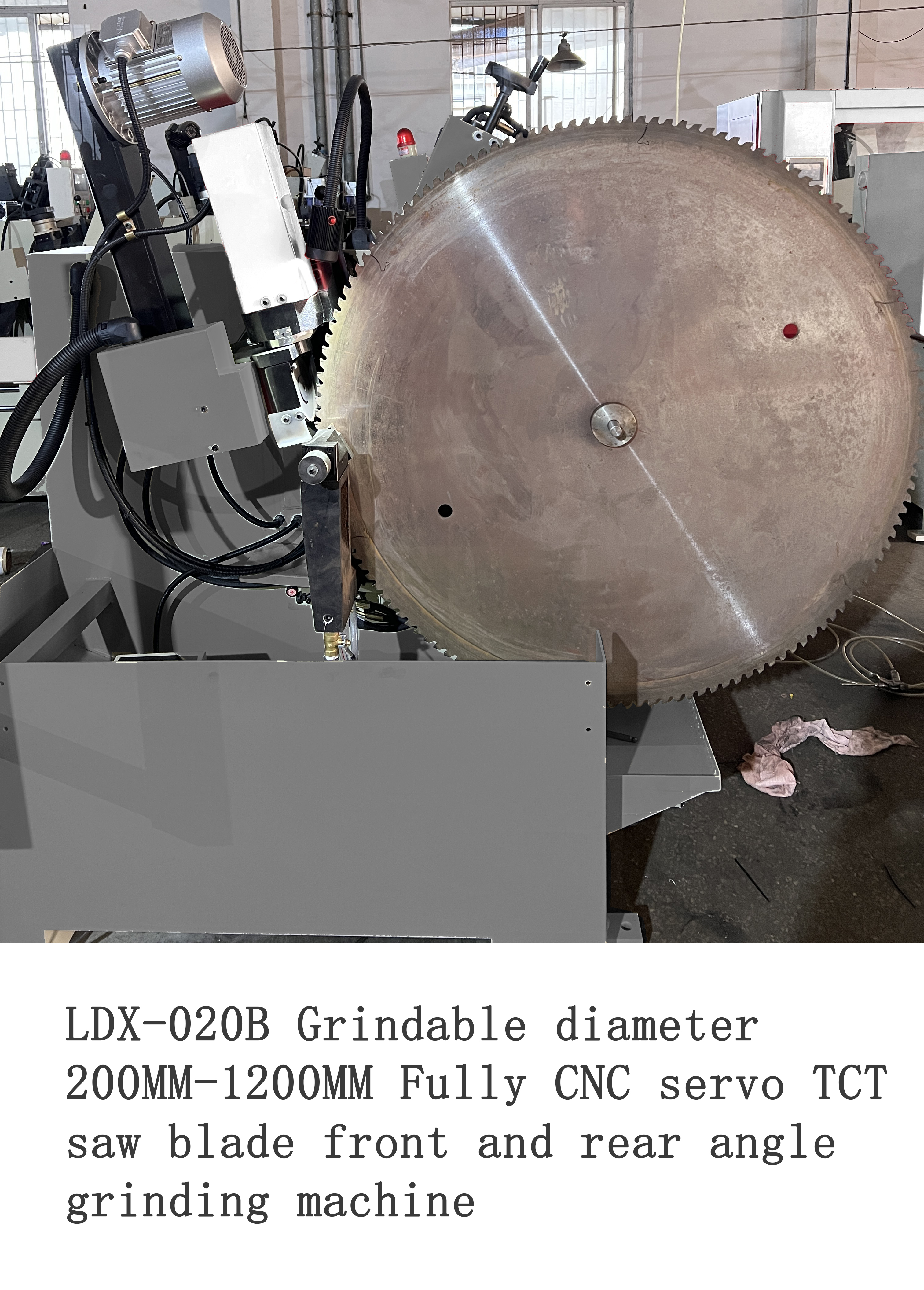

LDX-020B Full CNC Front And Rear Angles TCT Saw Blade Grinding Machine

LDX-020B Full CNC Front And Rear Angles TCT Saw Blade Grinding Machine
